LED Flood Light (S1)

FL115 Series (10w)
FL220 Series (20w, 30w, 40w)
FL225 Series (20w, 30w)
FL295 Series (40w, 50w)
FL290 Series (50w, 60w, 70w, 80w)
FL330 Series (100w, 120w, 150w)

Input Voltage		85V-265Vac, 24Vdc (for <80w)
Frequency Range		50Hz – 60Hz (AC)
Total Harmonic Distortion		≤ 9 %
Power Factor		> 0.9
LED Quantity		1 pcs
LED Power Consumption		10w – 150w
LED Luminous Efficiency		85-100 LM/W; 120-130 LM/W
Lamp’s Efficiency		> 87 %
Illuminance Uniformity		> 0.4
Color Temperature (CCT)	WW	2700K – 3200K – 3700K
	PW	4500K – 5000K – 5500K
	CW	6000K – 6500K – 7000K
Color Rendering Index	WW	Ra> 70
	PW,CW	Ra> 75
LED Junction Temperature		≤80 deg.
Working Temperature		-40℃ ~ +55℃
Storage Temperature		-25℃ ~ +65℃
IP Grade		IP65
Working Life-span		50,000h

FL115 (10W)

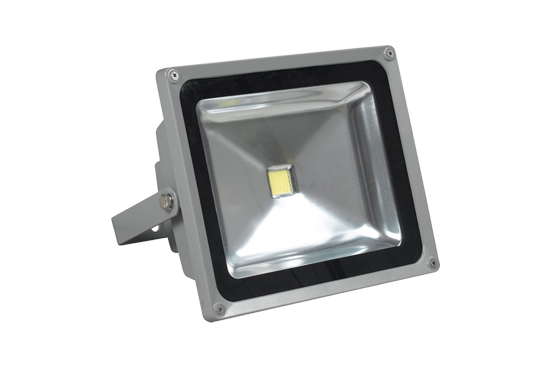

FL225B (20/30W)

FL290B (40/50W)

FL220 (20-40W)

FL330 (100-150W)

Materials
– High quality Die-casting aluminum alloy.
– Anodized and powder coated to assure the anti-corrosion performance.
– High power ceramic encapsulation multi-chip LED.
– High quality thermal conductive adhesive and other auxiliary materials.

Features
– Lamp’s Efficiency: >87%, Power factor>0.95
– Patented technology for LED encapsulation (COB)
– Input voltage: AC 85V-265V (50-60Hz); DC24V (Available for solar energy system)
– Protection level: IP65, Insulation Class: CLASS 1.
– Lifespan: 50,000 hours
– Environment friendly, no UV
– GB7000.1, IEC60598, IEC61347, EN55015 test compliance.

Applications
Outdoor lighting: Garden, buildings, factory, garage, warehouse, parking lots, tunnel, workshop, subway, supermarket, stadiums, squares, docks Etc.

Specs (FL115)
Specs (FL220)
Specs (FL225)
Specs (FL290)
Specs (FL295)
Specs (FL330)
Test Report (FL115-10W)
Test Report (FL220-20W)
Test Report (FL220-30W)
Test Report (FL225B-20W)
Test Report (FL225B-30W)
Test Report (FL290B-40W)
Test Report (FL290B-50W)
Test Report (FL290s-50W)
Test Report (FL295-60W)
Test Report (FL295-80W)
Test Report (FL330-120W)
Test Report (FL330-150W)
